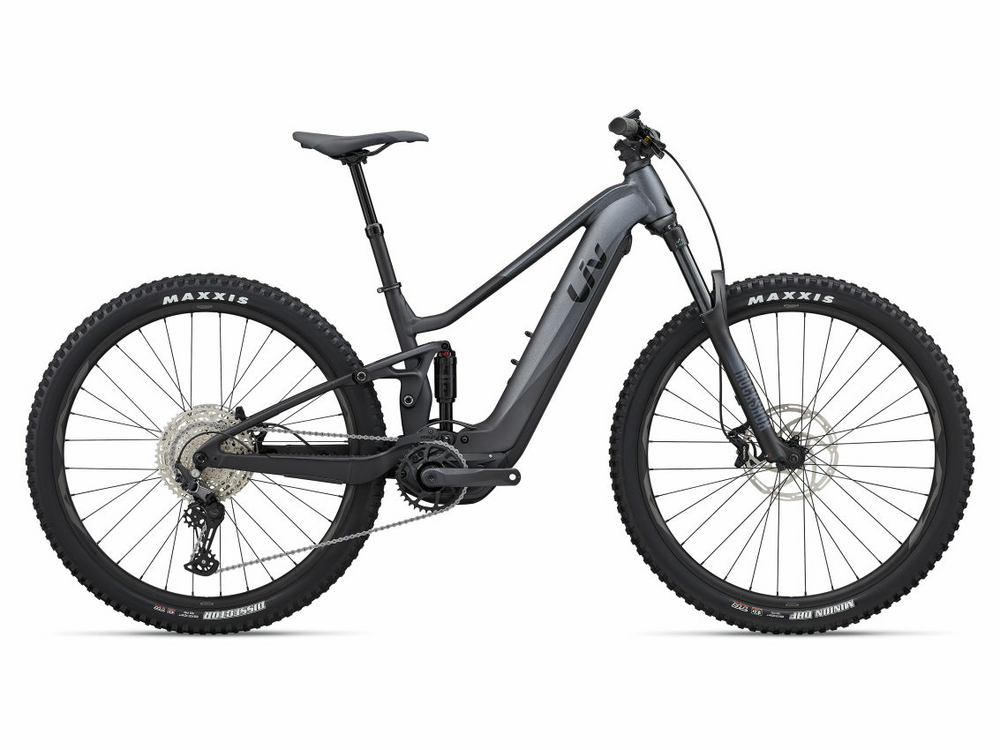

Liv Embolden E+ 1 Pro
THE SPIRITED POWER OF EMBOLDEN E+ PRO ENTICES YOU TO SAY YES AT EVERY TURN, TAKING YOU FARTHER AND FASTER THAN BEFORE.
Capable and Fun
The high-performing Embolden E+ Pro provides an exhilarating ride. It has a maximum range of 290km (that's 110-150km more than other bikes in the Embolden E+ range), loads of travel (140mm front, 125mm rear), and a powerful motor (85Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.
Versatile for Multi-Usage
The Embolden E+ Pro is your new secret weapon. With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.
Premium, Integrated Design
This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 800 / SYNCDRIVE PRO
- Extreme: 43 miles
- Good: 86 miles
- Ideal: 155 miles
TECHS & FEATURES
ALUXX SL ALUMINUM TECHNOLOGY
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
FLEXPOINT SUSPENSION TECHNOLOGY
A proven "single-pivot" design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It's a seamless extension of a rider's own power that sets Liv and Giant E-bikes apart from other "electric" bicycles. The system consists of four key innovative technologies that work in unison with your own body's power output—a seamless extension of your own capabilities.
EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.
The powerful SyncDrive Pro 2 Motor was co-developed with Yamaha and is their lightest ever E-bike motor. It provides 85Nm of torque, the most in the Amiti E+ range, and will help you confidently conquer the steepest of hills. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With this powerful yet quiet motor underneath you, you'll feel naturally strong in any riding situation and at any speed.
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.
This compact 2-in-1 control unit has everything you need at your fingertips. Glance down at the color display to check all your riding data, such as battery status, speed, distance, time, and cadence. Pair it with the RideControl App and you can opt to get phone notifications. Keep your electronic devices charged using the convenient USB port. Need to get off and walk a little? We've got you. Simply tap Walk Assist and easily push your bike uphill or over rough terrain.
|A. SEAT TUBE LENGTH (mm)||380||395||425||455|
|B. SEAT TUBE ANGLE||77.0°||76.5°||76.0°||76.0°|
|C. TOP TUBE LENGTH (mm)||565||575||595||615|
|D. HEAD TUBE LENGTH (mm)||105||105||115||125|
|E. HEAD TUBE ANGLE||66.0°||66.0°||66.0°||66.0°|
|F. FORK RAKE (mm)||44||44||44||44|
|G. TRAIL (mm)||121||121||121||121|
|H. WHEELBASE (mm)||1201||1199||1215||1237|
|I. CHAIN STAY LENGTH (mm)||468||468||468||468|
|J. BOTTOM BRACKET DROP (mm)||20||40||40||40|
|K. STACK (mm)||601||621||630||639|
|L. REACH (mm)||426||426||438||455|
|M. STAND OVER HEIGHT (mm)||690||710||735||760|
|N. HANDLEBAR WIDTH (mm)||750||750||780||780|
|O. STEM LENGTH (mm)||40||40||50||60|
|P. CRANK LENGTH (mm)||165||165||165||165|
|Q. WHEEL SIZE||R27.5" / F29"||29"||29"||29"|
|X-Small||4'11" to 5'4"|
|Small||5'1" to 5'8"|
|Medium||5'5" to 5'9"|
|Large||5'7" to 5'11"|
|Frame||ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset|
|Fork||RockShox 35 Silver, 140mm, tapered steerer, 110x15 thru-axle|
|Rear Shock||SR Suntour Raidon R, 190x45mm, custom tuned|
|Rims||Giant AM 27.5" (XS), 29"(S, M, L), Tubeless ready, 30mm inner width|
|Hubs||Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle|
|Spokes||Sapim E-Lite [R] Race [F], e-bike optimized|
|Tires||Maxxis Minion DHF 27x2.5"(XS), 29X2.50"(S, M, L) Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 27.5x2.4"(XS), 29X2.40"(S, M, L) Foldable WT, TLR, EXO, 60TPI [R]|
|Crankset||FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T|
|Front Derailleur||MRP HD2 co-moulded chain guide|
|Rear Derailleur||Shimano Deore 12-speed|
|Cassette/Freewheel||Shimano CS-M6100-12, 10-51T, 12-speed|
|Chain||KMC e.12 Turbo, EcoProteq, e-bike optimized|
|Brakes||Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm|
|Brake Levers||Tektro HD-M750|
|Handlebars||Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L)|
|Tape/Grips||Liv Tactal Pro Single Lock-On Grips|
|Seatpost||Giant Contact Switch, dropper, 30,9mm (XS: 100/ S:125/ M:150/ L:170)|
|Saddle||Liv sylvia E|
|Accessories & Extras||
Tubeless kit (liquid, valves, levers, manual, tool)
Lock: Torx 25 Battery Lock with built-in Torque limiter
|Motor||SyncDrive Pro 2, 85Nm, powered by Yamaha|
|Battery||EnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible|
* Subject to change without notice.
|Black Diamond/Black / X-Small / 29-inch||4712878877214||2303357103|
|Black Diamond/Black / Small / 29-inch||4712878867048||2303357104|
|Black Diamond/Black / Medium / 29-inch||4712878867055||2303357105|
|Black Diamond/Black / Large / 29-inch||4712878867062||2303357106|
